¶ OAE Threaded Inserts
This page guides you through the locations of threaded inserts in OAE's parts. Unless otherwise specified, all inserts are M3x4.6x6mm
For simplicity, it follows the order of parts from the Printed Parts List.
¶ Base

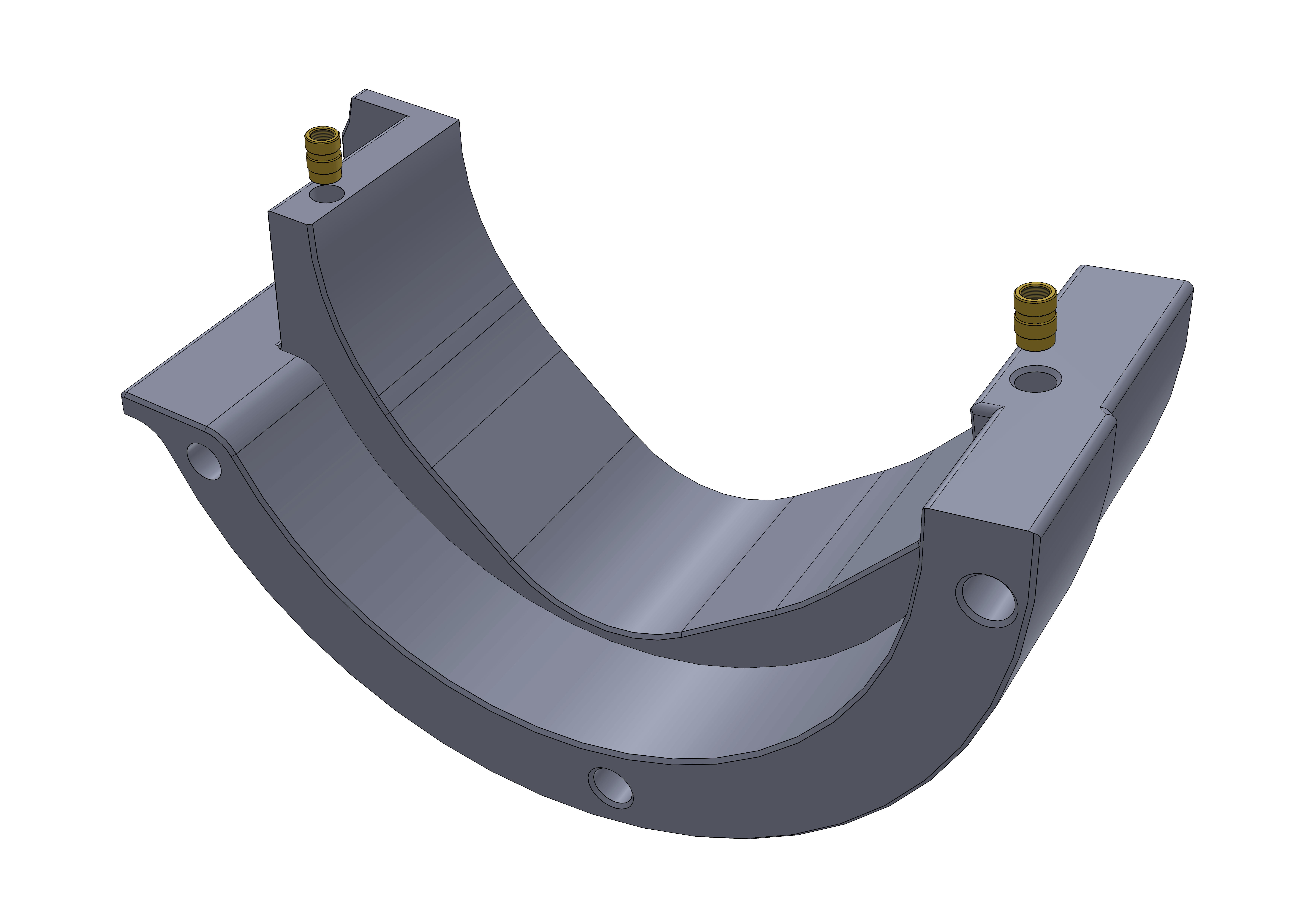

6012_base_left_bottom

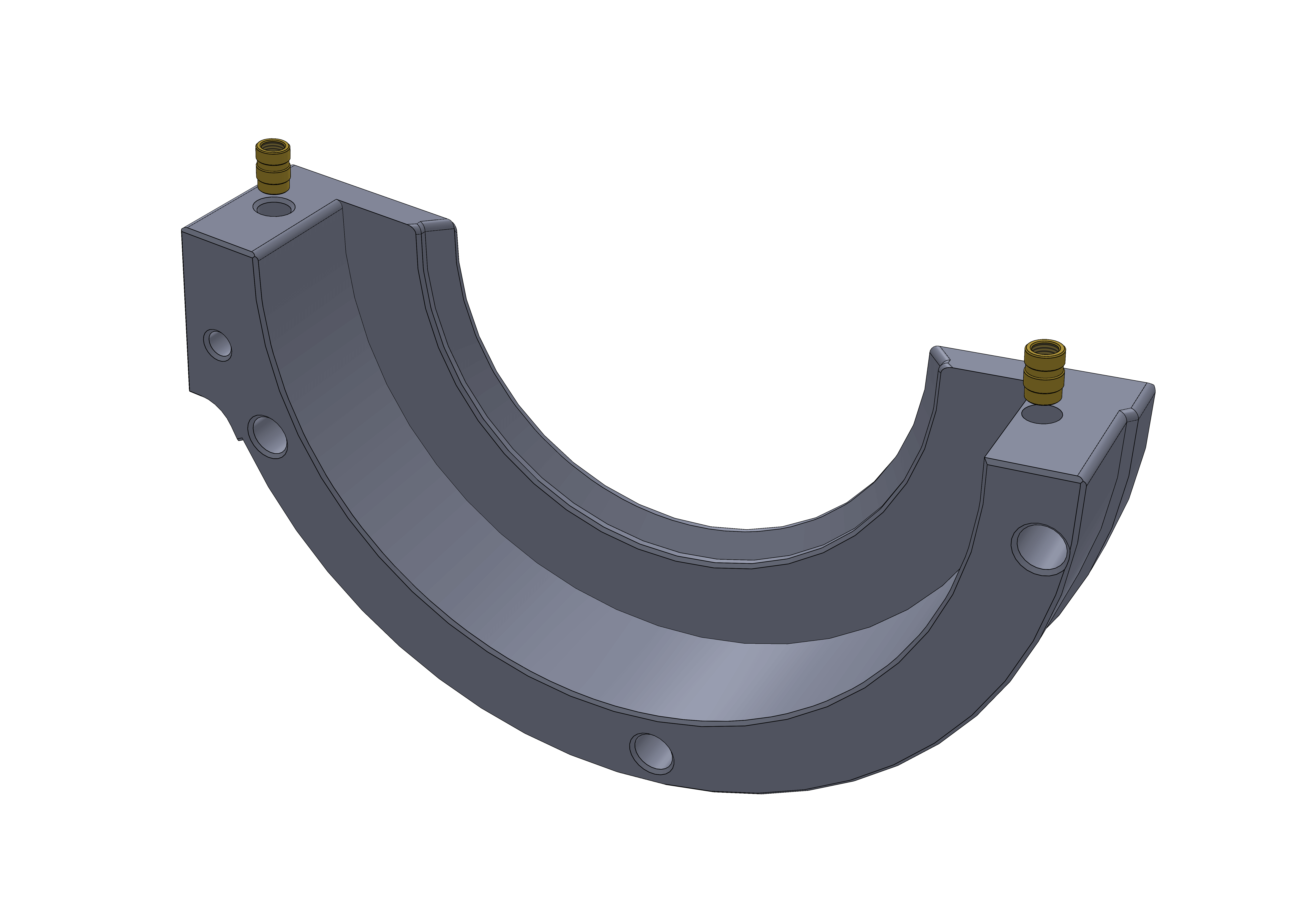

6012_base_left_top

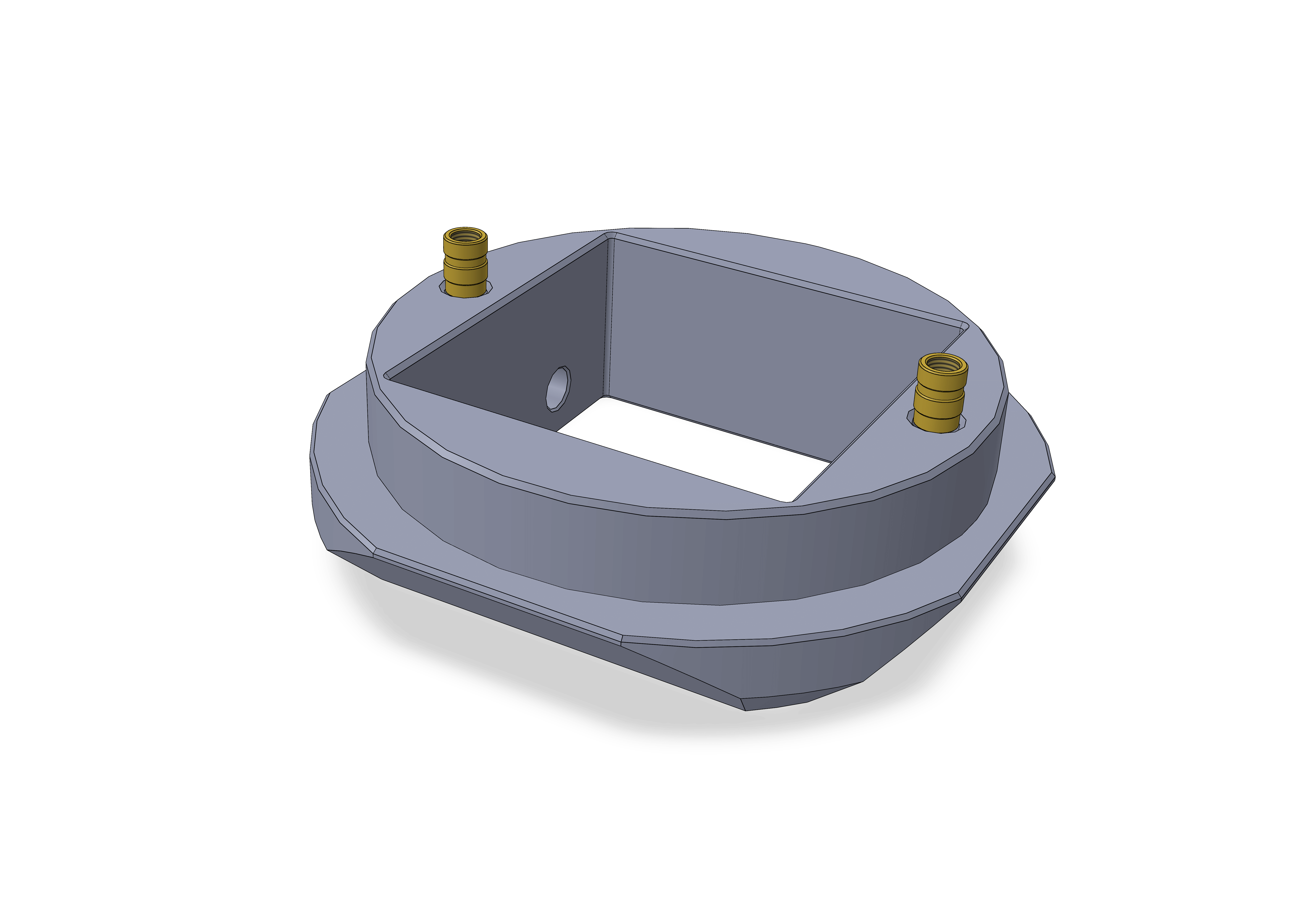

4040adapter_mid

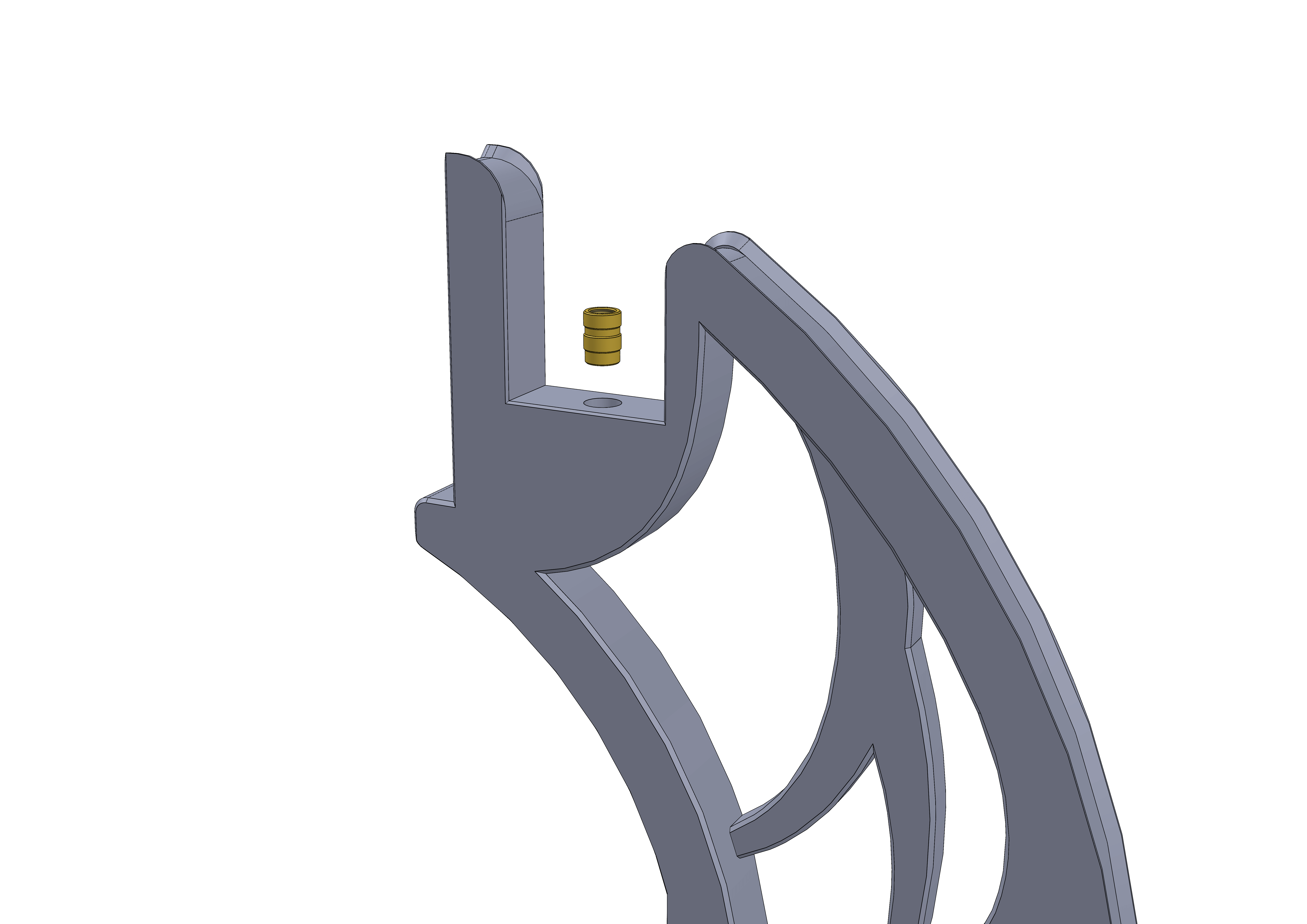

RA_ring_right
¶ RA_gearbox

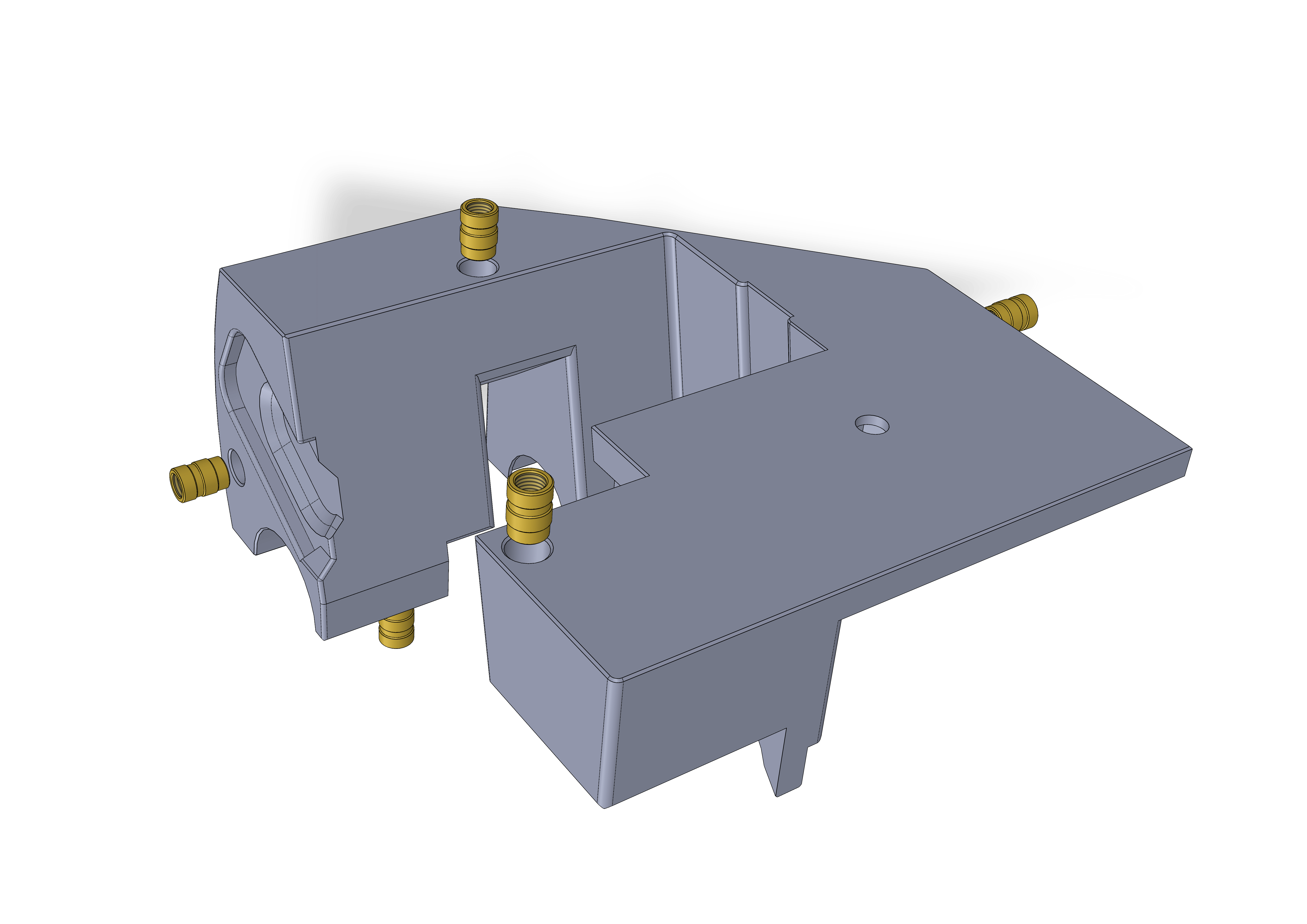

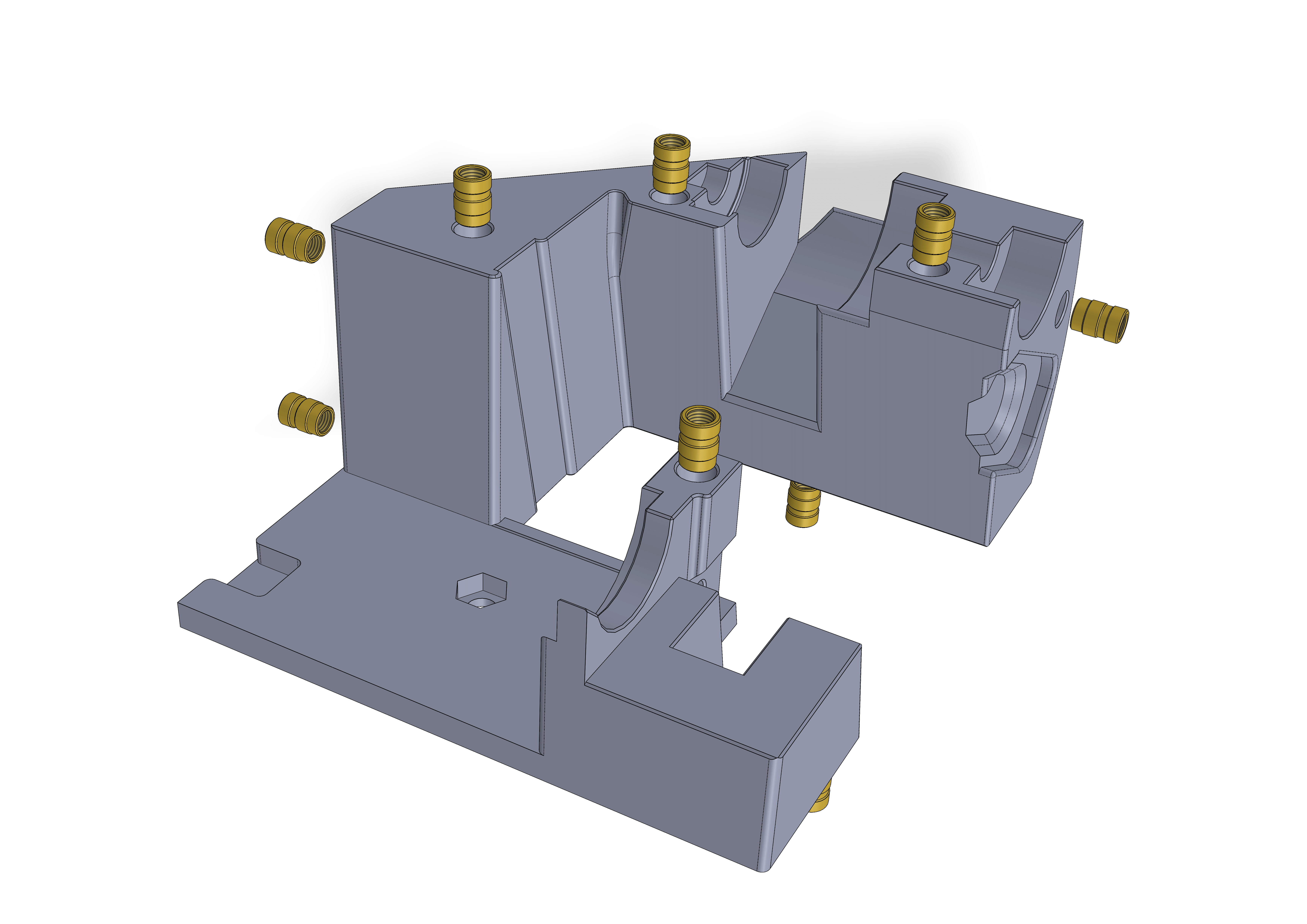

gearbox

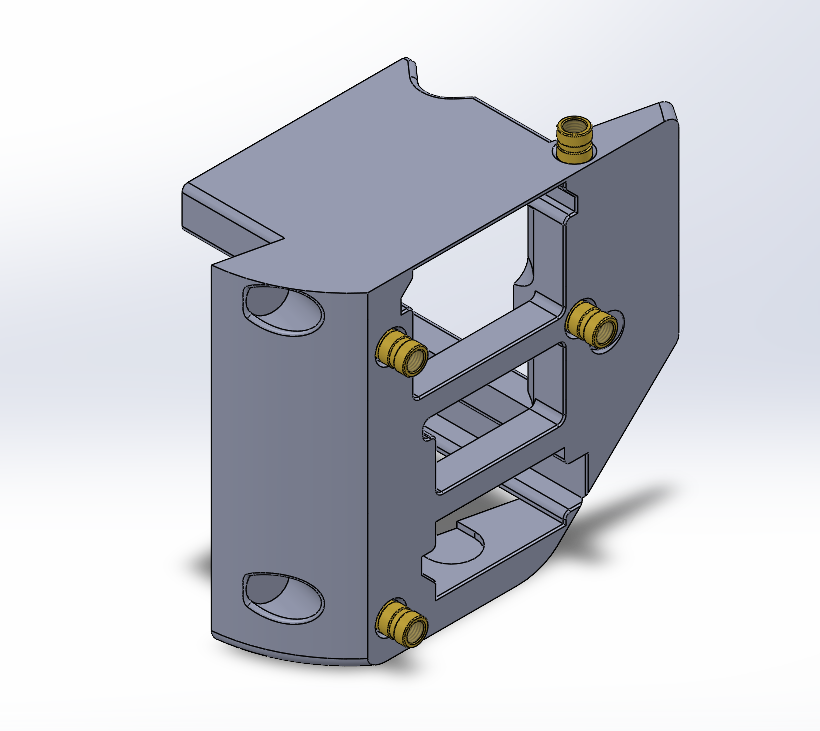

gearbox_tensioner_top

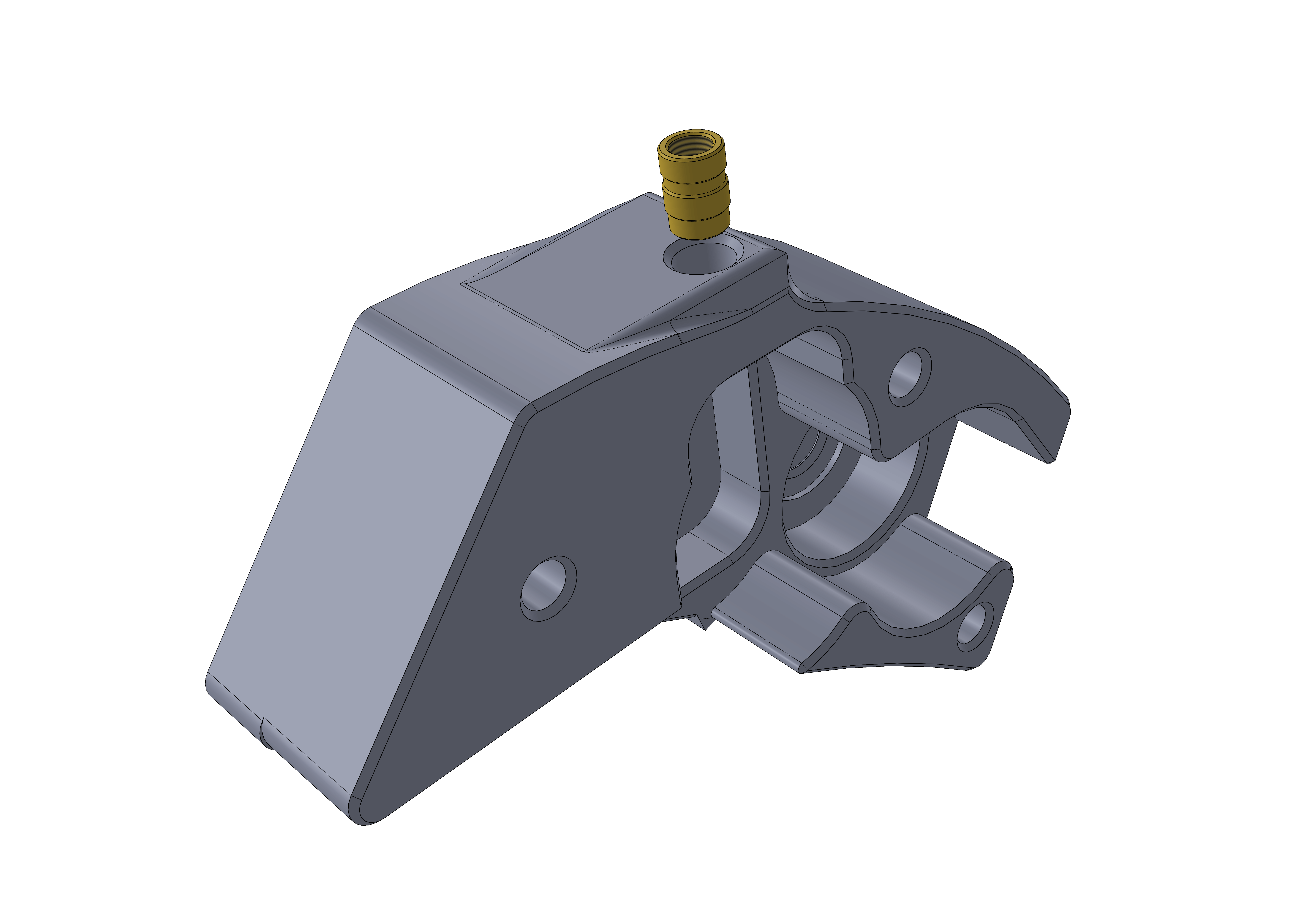

drive_pulley_holder

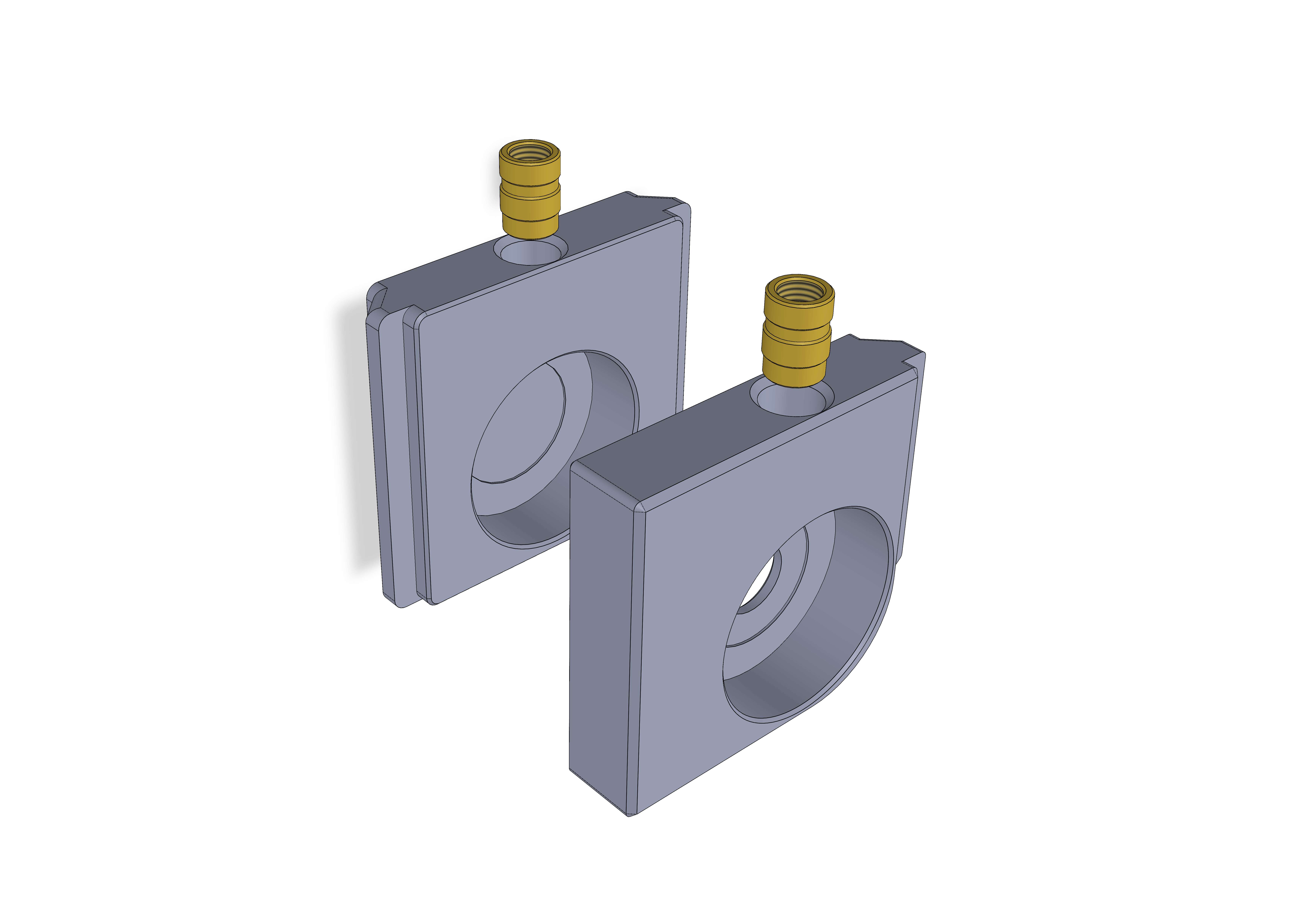

gearbox_625_top & _bottom

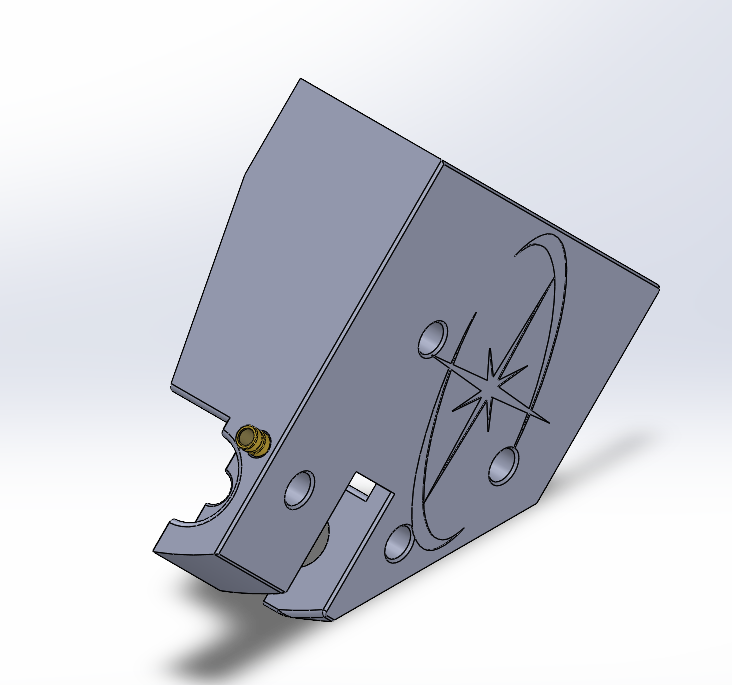

gearbox_side
¶ DEC

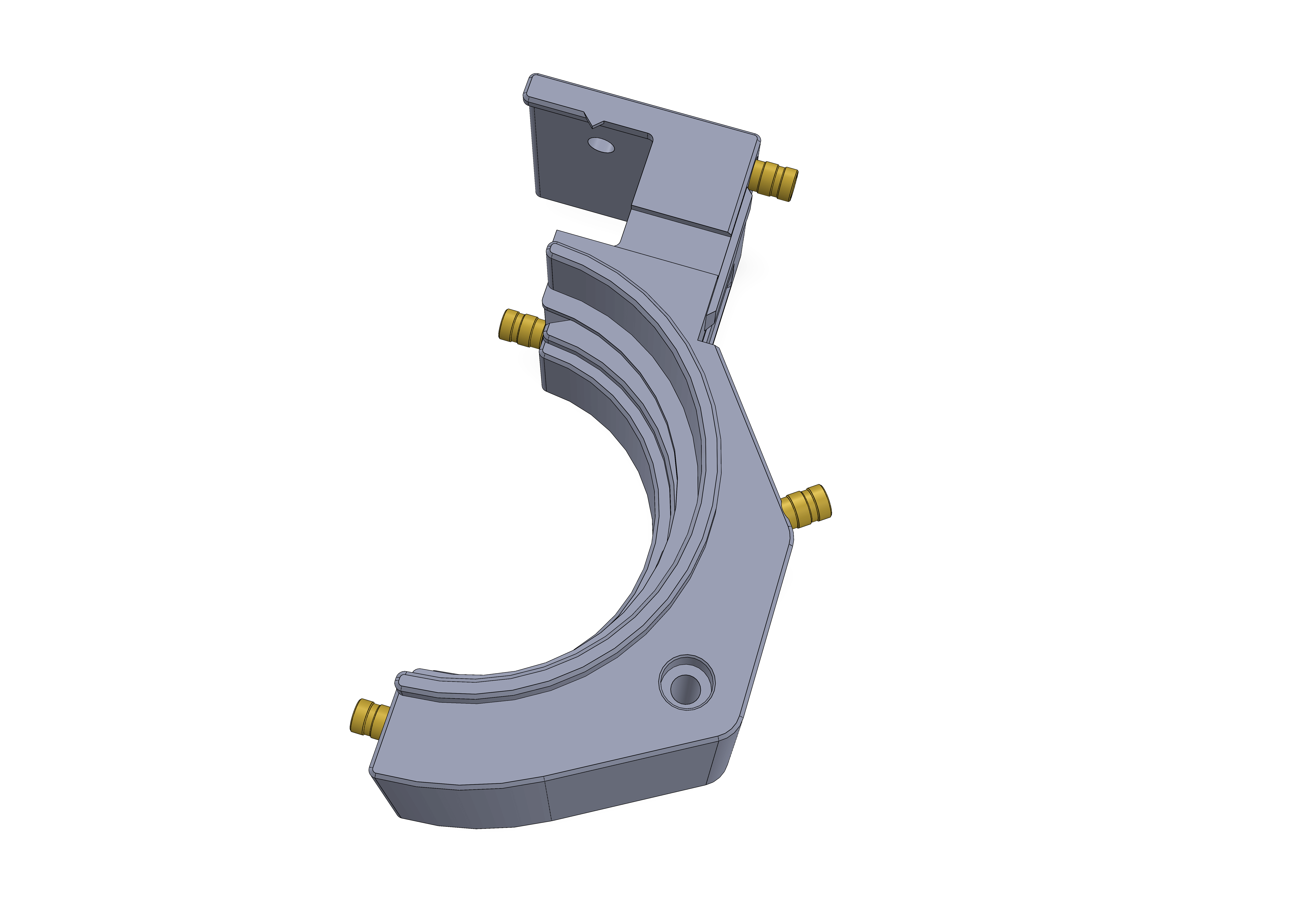

DEC_holder_front_right

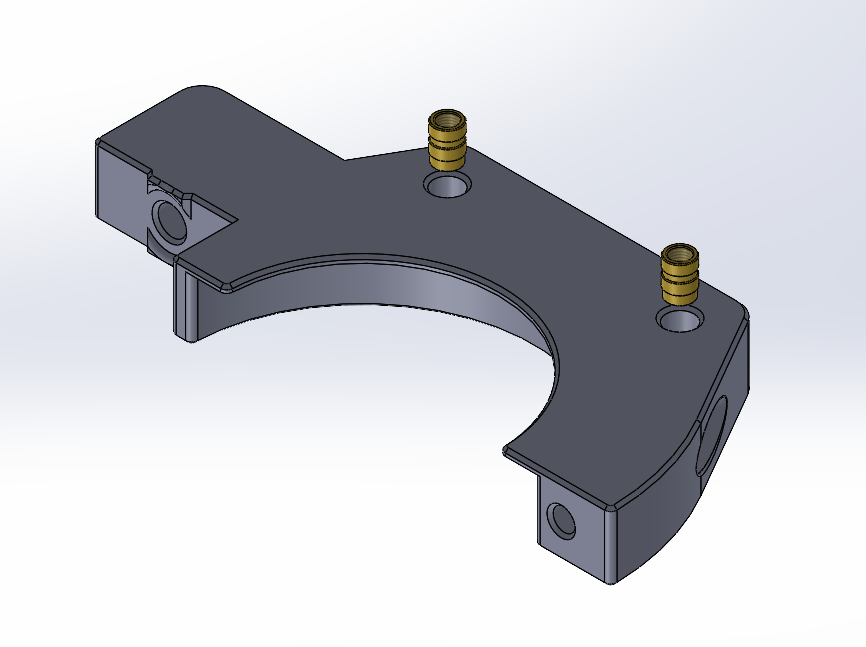

DEC_holder_rear_left

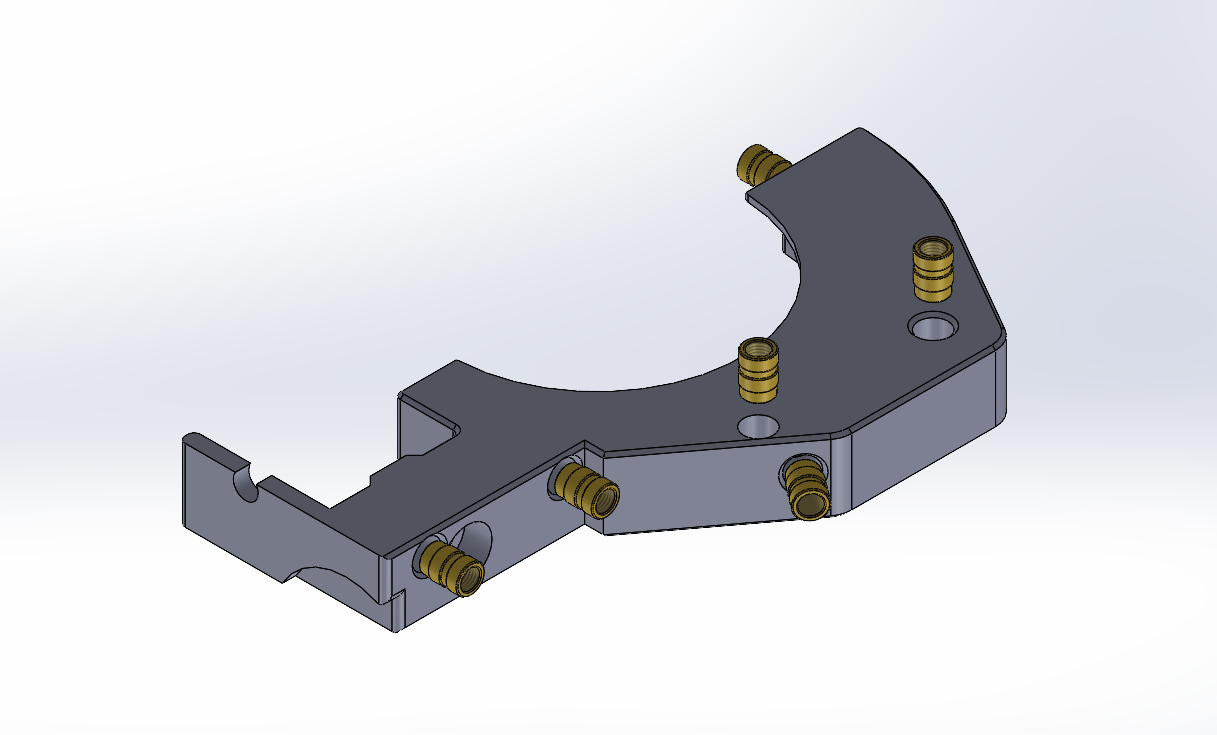

DEC_holder_rear_right

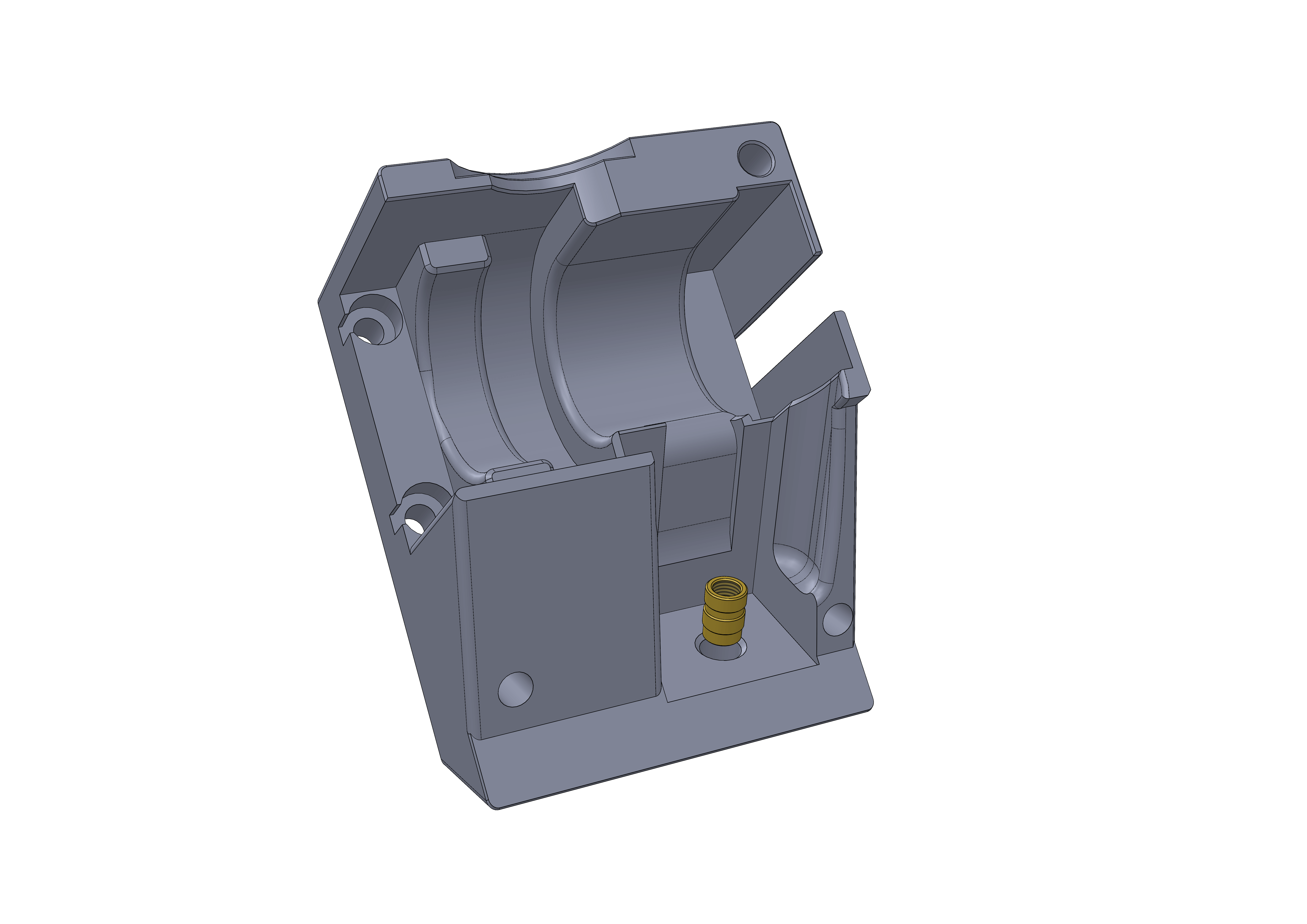

DEC_gearbox

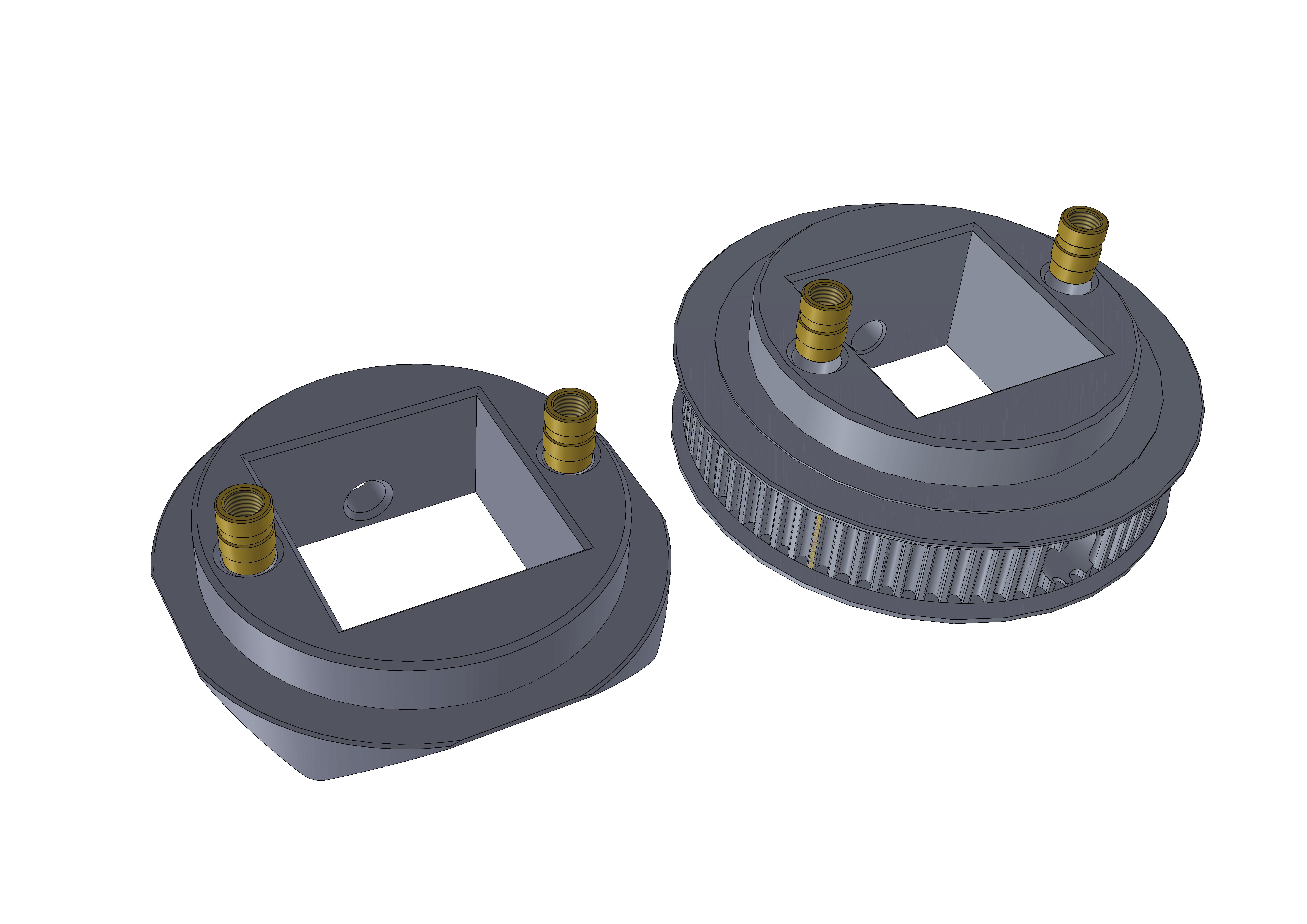

2020_adapter_mid & 72T_pulley

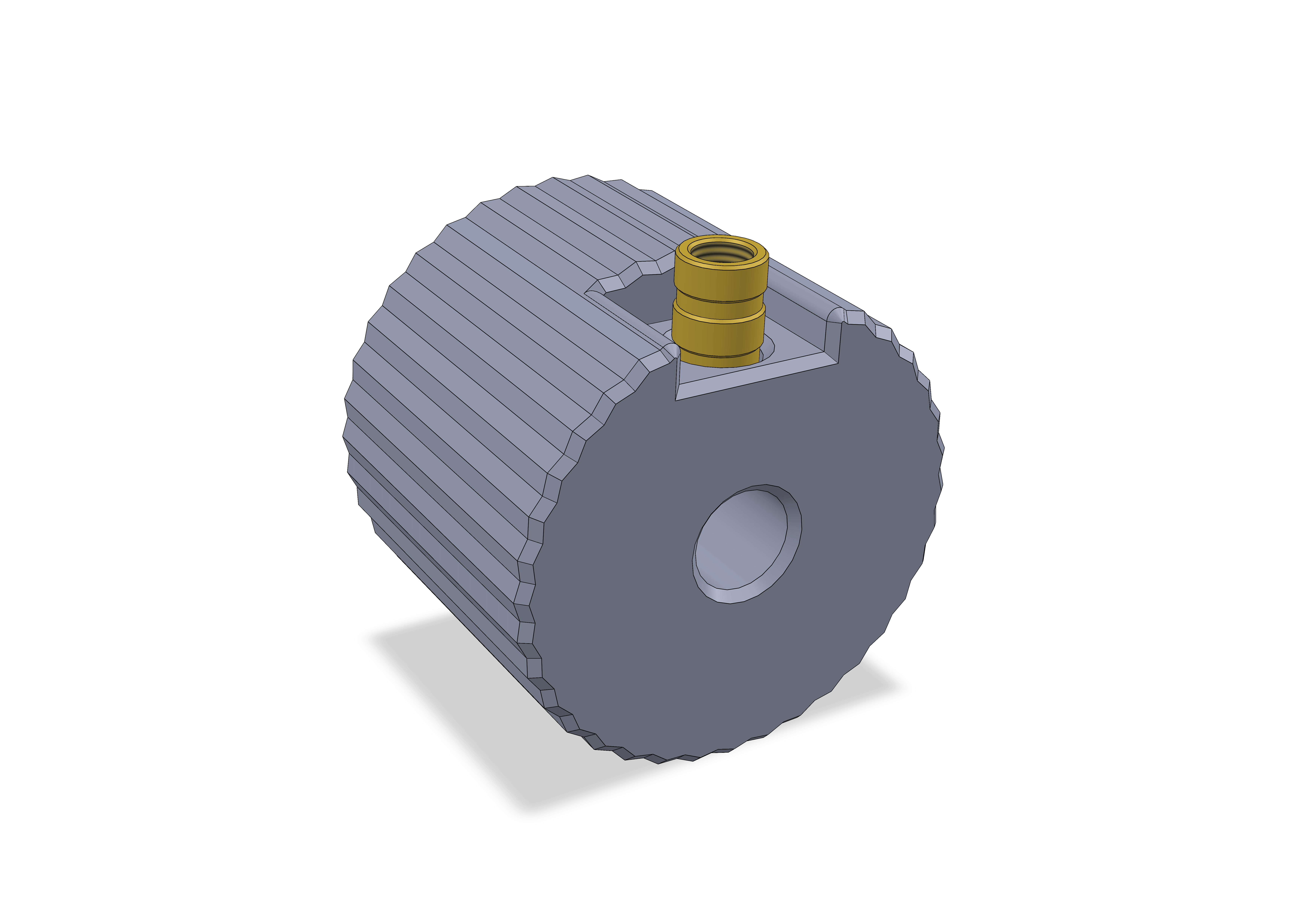

DEC_knob
¶ ALTAZ

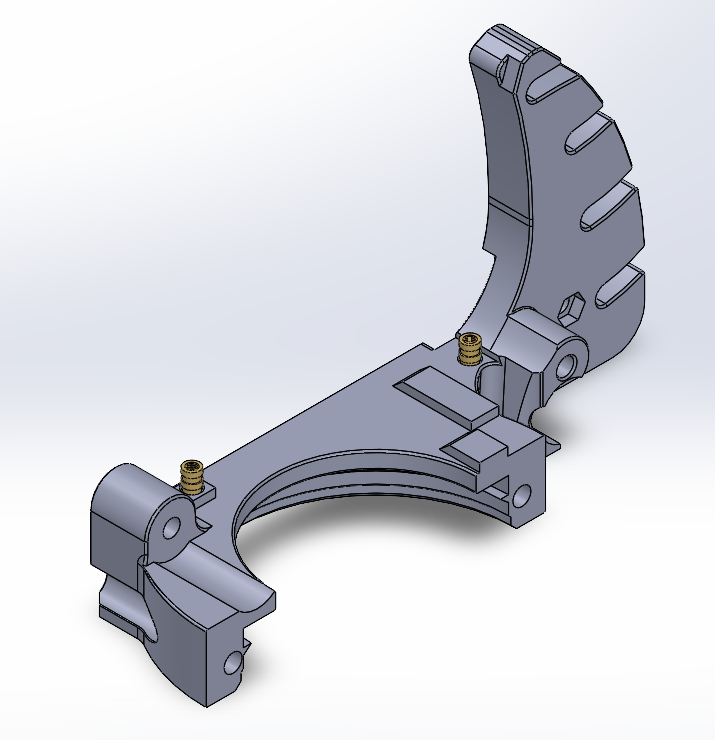

51111_adapter_left

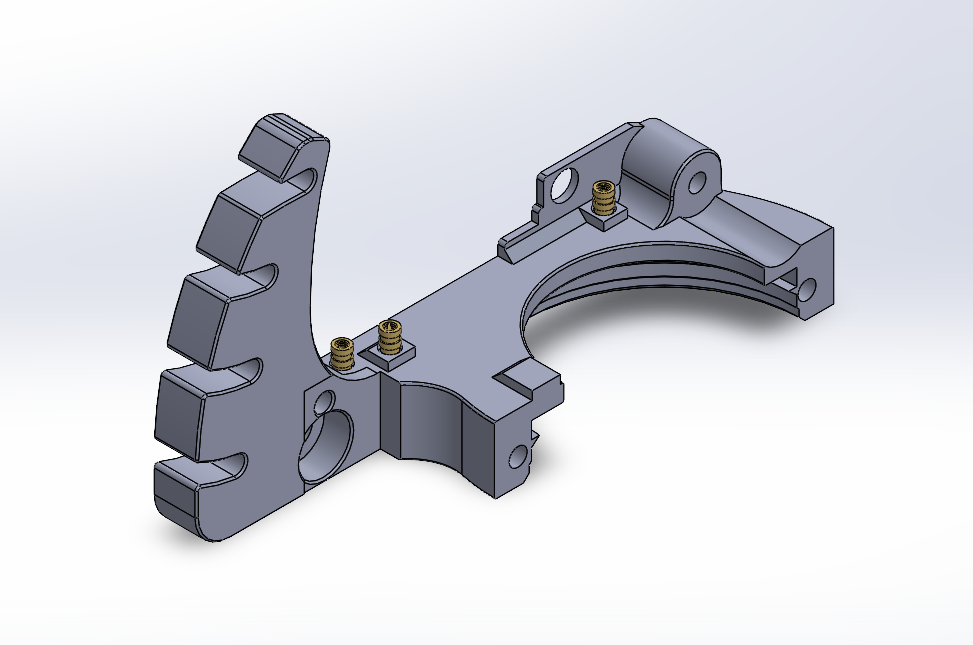

51111_adapter_right

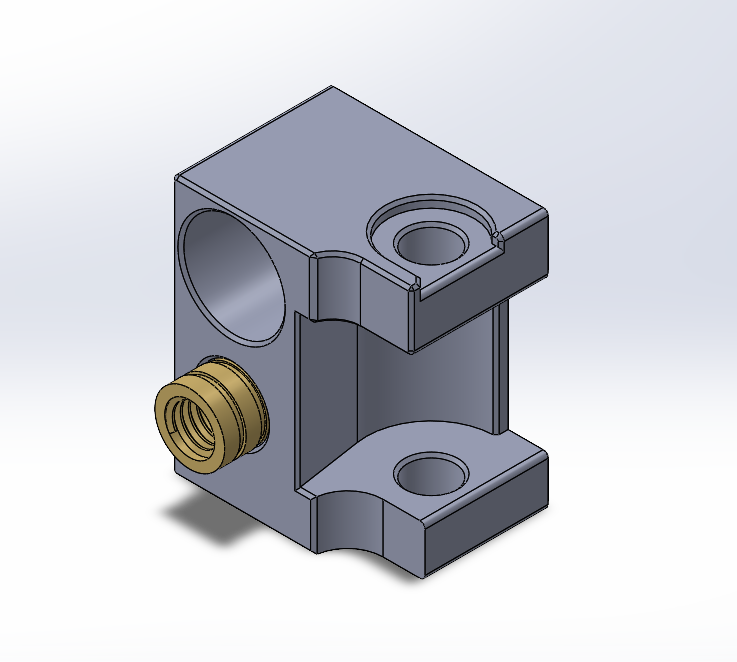

AZ_slider
M5 insert (One M5 insert on both sides). Immediately after inserting the second insert, screw in the M5 rod or a M5 screw so it goes through both inserts. Let it cool down like this.

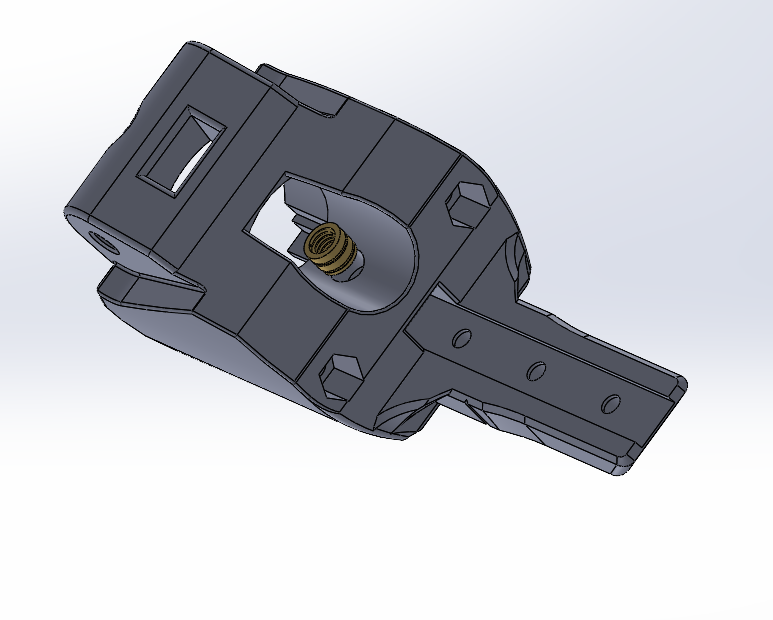

ALT_slider

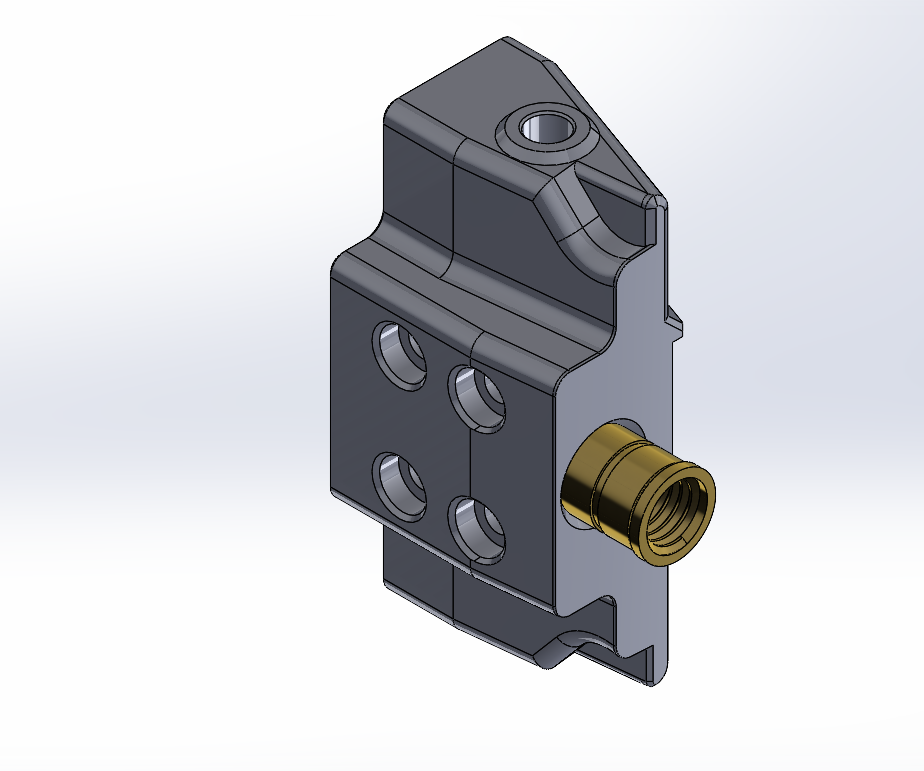

MGN9C_adapter
M8 insert. Insert slowly and carefully until flush. Immediately after inserting, screw in the M8 rod and make sure it's centered in the printed part and doesn't touch the walls.
Continue to Assembly
