¶ OAE Additional Assembly
¶ EQ5 Tripod Adapter

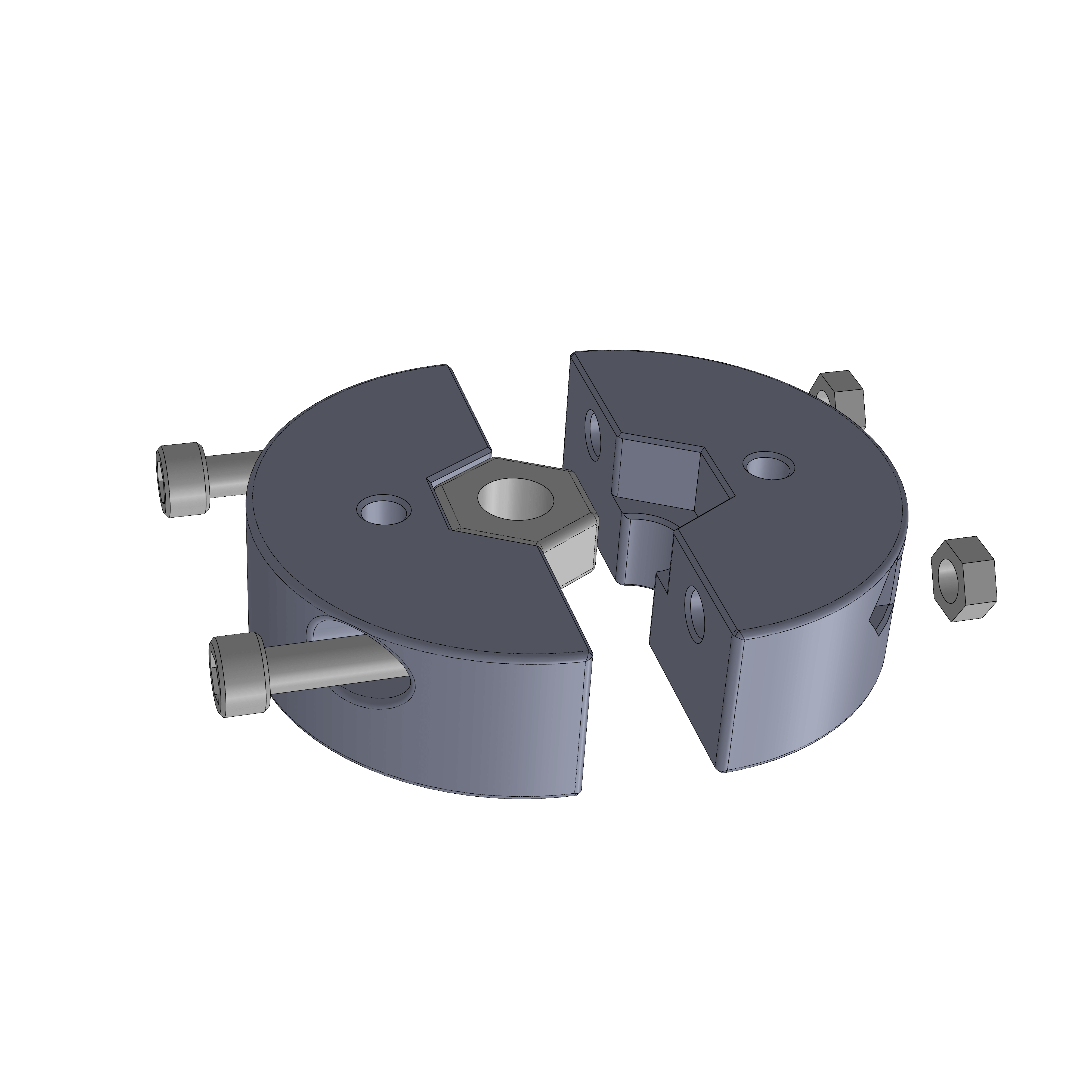

- Assembly
- Parts

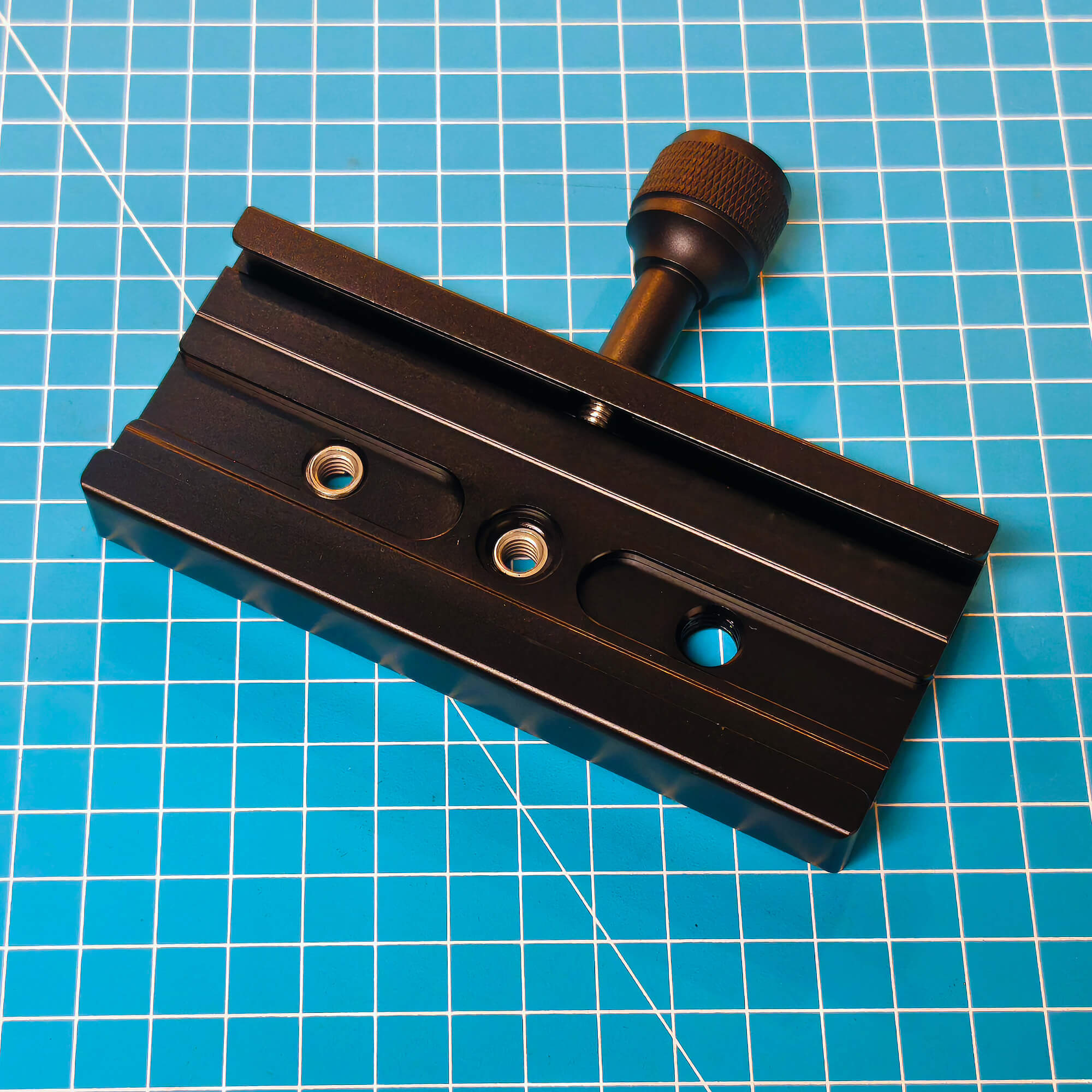

- Make sure you have two of the little thread inserts attached as shown. They are screwed in from the bottom.
¶ Hardware
- 120N Arcaswiss clamp
- Assembly
- Parts
- Assembly
- Parts

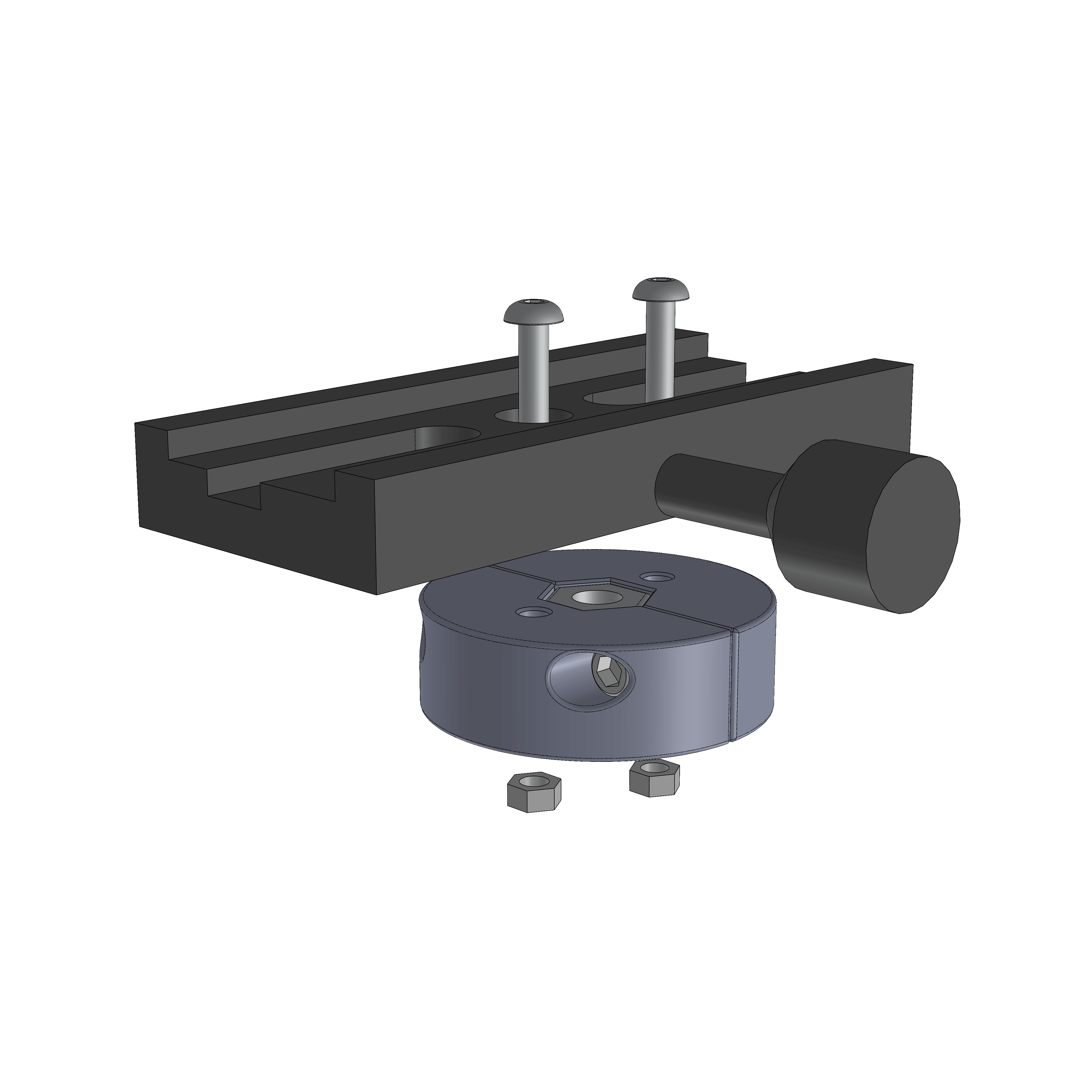

- Attach the clamp as shown. The two M5 screws go through the holes that have the thread adapters in them.
¶ Hardware
- 2x M5x20 Flathead
- 2x M5 Nut
¶ Counterweights

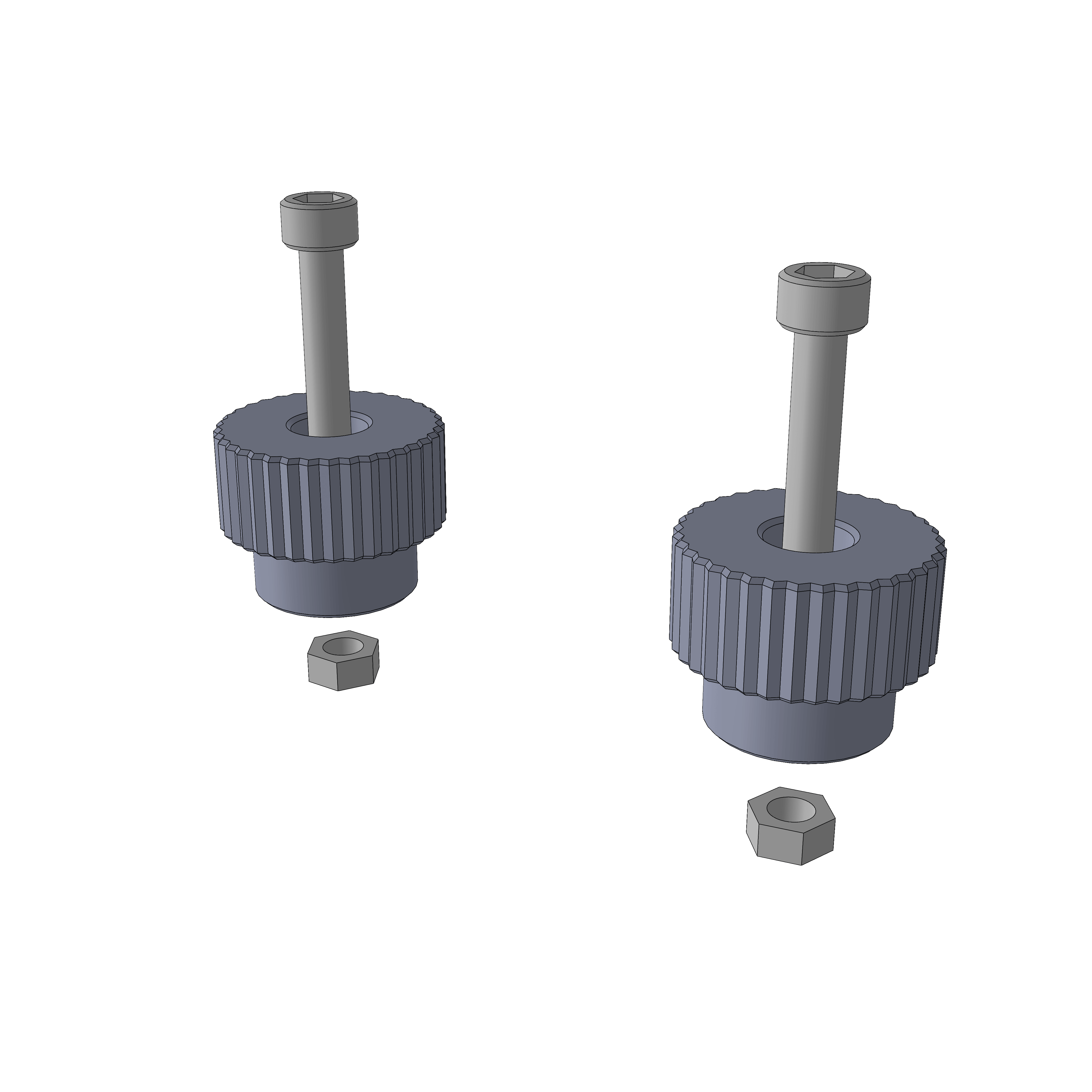

The counterweight bar is attached with 2 M4/M5 x 40mm fullshaft screws, Nuts and TNuts. If you are self-sourcing the screws you might want to go for M4 here, to avoid having to buy 2 M5 TNuts. The Screw Kit contains M5 Hardware for this.

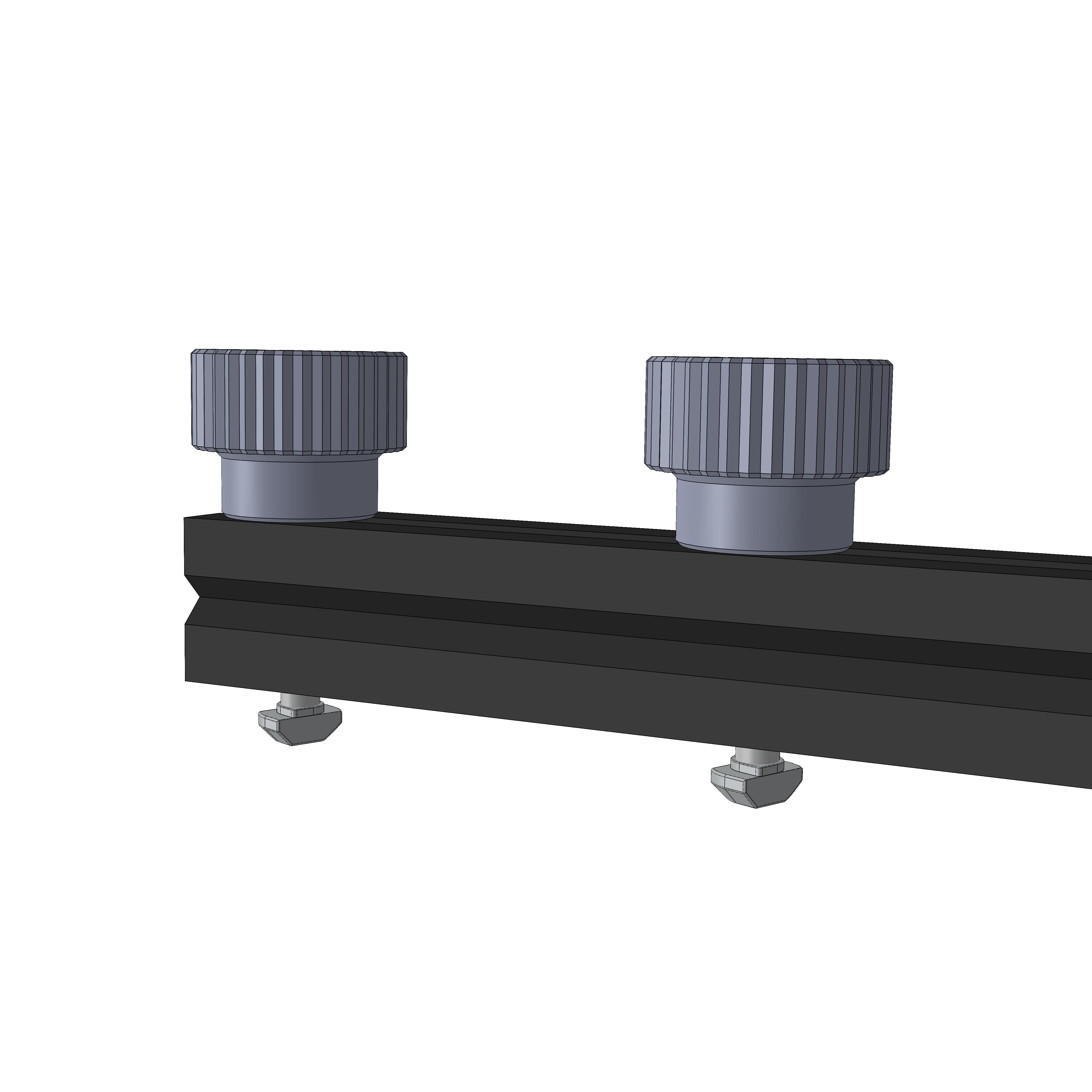

The TNuts are attached to the bottom, now the bar can be attached and detached from OAE easily. You can screw the TNuts into the 2020 slot to not loose them.
